Bambu Lab AMS

AMS UNITS ARE EXPECTED TO BE BACK IN STOCK IN THE FIRST WEEK OF MARCH.

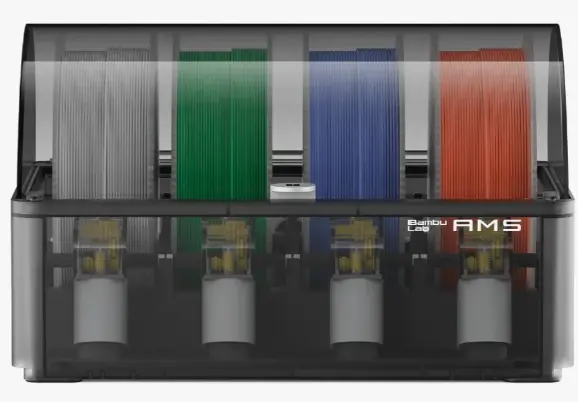

Bambu Lab AMS - Automatic Material System

If you plan to connect multiple AMS units together, you will need to purchase the AMS Hub.

Product Features

• Multi-Colors/materials Capability
• Keep Filament Dry
• Filament Runout & Winding Detection
• AMS Filament Backup

COMPATIBLE WITH X1 & P1 SERIES

What’s In the Box

• 1x High Temperature Reusable Spool (made by PC / ABS Alloy Material?no filament is included)
• 3x Reusable Spool(made by ABS Material)
• 1x Filament Buffer
• 1x Bus Cable - 4pin
• 1x Bus Cable - 6pin
• 2x Spare Filament Cutter
• 3x M3*23 Screw
• 1x 550mm PTFE Tube
• 1x 370mm PTFE Tube
• 4x Internal Tube
• 1x PTFE Tube Connector
• 1x Instruction Manual
• 2x Desiccant inside the AMS

AMS Tech Specs

Product Size 368x283x224 mm

Package Size 445x365x320 mm

Product Weight 2.5 kg

Gross Weight 5 kg

Material ABS

Supported Filament

PLA, PETG, ABS, ASA, PET, PA, PC, PA, PP, POM, HIPS and Bambu PLA-CF/ PAHT-CF/ PETG-CF

* Unsupported Filament

TPE, TPU, PVA, Bambu PET-CF/ TPU 95A and other brand's filaments that contain carbon fiber or glass fiber

Filament Diameter 1.75 mm

Supported Spool Size width: 50-68 mm, diameter: 197-202 mm

* *Filaments that are too soft, brittle or abrasive are not compatible with the AMS, such as Bambu PET-CF / TPU 95A, and other brand's TPE, TPV, PVA, PET-CF/GF, PA-CF/GF, PAHT-CF/GF, etc.

No More Filament Leftover

Without AMS, when the filament runs out, manual spool replacement interrupts printing and results in wasted filaments.

With AMS, there is a seamless transition to a new spool which keeps uninterrupted printing and minimizes waste.

Filament Backup

Your print never stops with automatic spool changing. With AMS filament backup function, never worry about running out of filament during your sleep or absence, ensuring a seamless and uninterrupted printing process, preventing any filament waste and promoting energy efficiency.

Filament Tangle Detection

When the filament at the toolhead encounters resistance, it may be that the filament is tangled or the spool is stuck, AMS can detect it immediately and suspend printing to avoid air printing.

Keep the Filament Dry

The AMS has an air-tight seal and with the help of dessicant material, it absorbs moisture to keep the moisture away from Filament.

A Humidity Sensor also detects the humidity inside the AMS and provides information to the user when the humidity is higher or the dessicant may need to be replaced.

For best print quality, dry filament is required.

Each Bambu Lab AMS is composed of 4 filament slots, and up to 4 AMS can be installed in parallel and supports up to 16 colors for stunning prints that truly stand out. To achieve 16-color printing, connect 4 AMS via AMS hub
